Visuaro - Product Designer for WooCommerce documentation

Customers design products on your WooCommerce store and you get print ready files. Pro adds proof approval, team orders, gang sheets and vendor dispatch.

Try the live demo Get Visuaro

Overview

Customers design products on your WooCommerce store and you get print ready files. Pro adds proof approval, team orders, gang sheets and vendor dispatch.

Requirements

  • WordPress 6.4 or later
  • PHP 7.4 or later
  • WooCommerce 8.5 or later
  • Required plugins: woocommerce

Installation

Download Visuaro - Product Designer for WooCommerce from your ProPluginsLab account, then upload it to WordPress.

  1. Log in to your ProPluginsLab account and open My Account > Downloads.

  2. Download the plugin zip file.

  3. In your WordPress admin, go to Plugins > Add New Plugin > Upload Plugin.

  4. Choose the zip file, click Install Now, then Activate.

License and automatic updates

Visuaro works fully as soon as it is activated. The license key turns on automatic updates, so new versions arrive in WordPress like any other plugin update. Pro features never depend on it.

Activate your license

  1. Find your license key in My Account on propluginslab.io, in the license keys section. It is also in your order confirmation email.

  2. In WordPress, open Visuaro > License. When two or more ProPluginsLab plugins or add-ons are active on the site, WooCommerce > Licenses also appears and lists all of them in one place.

  3. Paste the key into the Visuaro - Product Designer for WooCommerce Pro row and click Activate. The status changes to Active and automatic updates are on.

The license screen with a license key field, an Activate button and the license status
Visuaro > License: paste the key and click Activate.

Receive updates automatically

Once the license is active, new versions of Visuaro show up under Dashboard > Updates and on the Plugins screen. Click Update now, or click Enable auto-updates in the Visuaro row on the Plugins screen and WordPress installs every future release for you.

Good to know

  • Keys are checked once a day in the background, so your site never waits for the license server. If the server is briefly unreachable, the plugin keeps its last known status.
  • An expired key or a key that is not accepted only stops updates. Visuaro keeps working. After renewing, click Check now in its row.
  • Moving to a new domain: click Deactivate on the old site first, then activate the key on the new one. The status shows Site address changed, checking until the new address is confirmed.
  • On the command line: wp ppl-license list, wp ppl-license activate <plugin> <key>, wp ppl-license check and wp ppl-license deactivate <plugin>.

Quick start

  1. Open Visuaro Dashboard

    Go to wp-admin/admin.php?page=visuaro in your WordPress admin.

  2. Open Templates and print areas

    Go to wp-admin/admin.php?page=visuaro-templates in your WordPress admin.

  3. Open Pricing rules

    Go to wp-admin/admin.php?page=visuaro-pricing in your WordPress admin.

  4. Open Visuaro settings

    Go to wp-admin/admin.php?page=visuaro-settings in your WordPress admin.

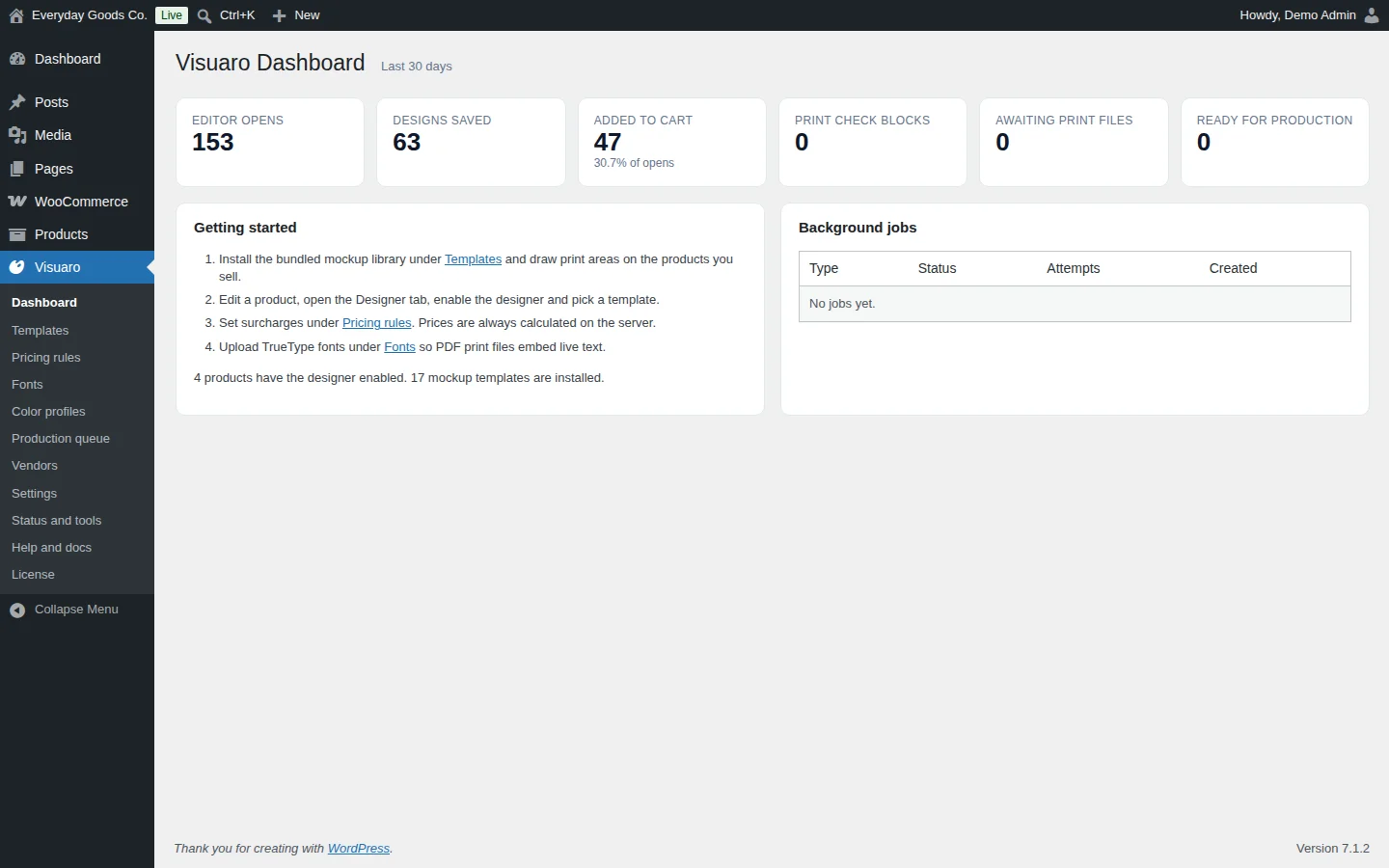

#Visuaro Dashboard

Location: wp-admin/admin.php?page=visuaro

On this screen:

  • Visuaro Dashboard
  • Getting started
  • Background jobs
Screenshot: Visuaro Dashboard
Visuaro Dashboard

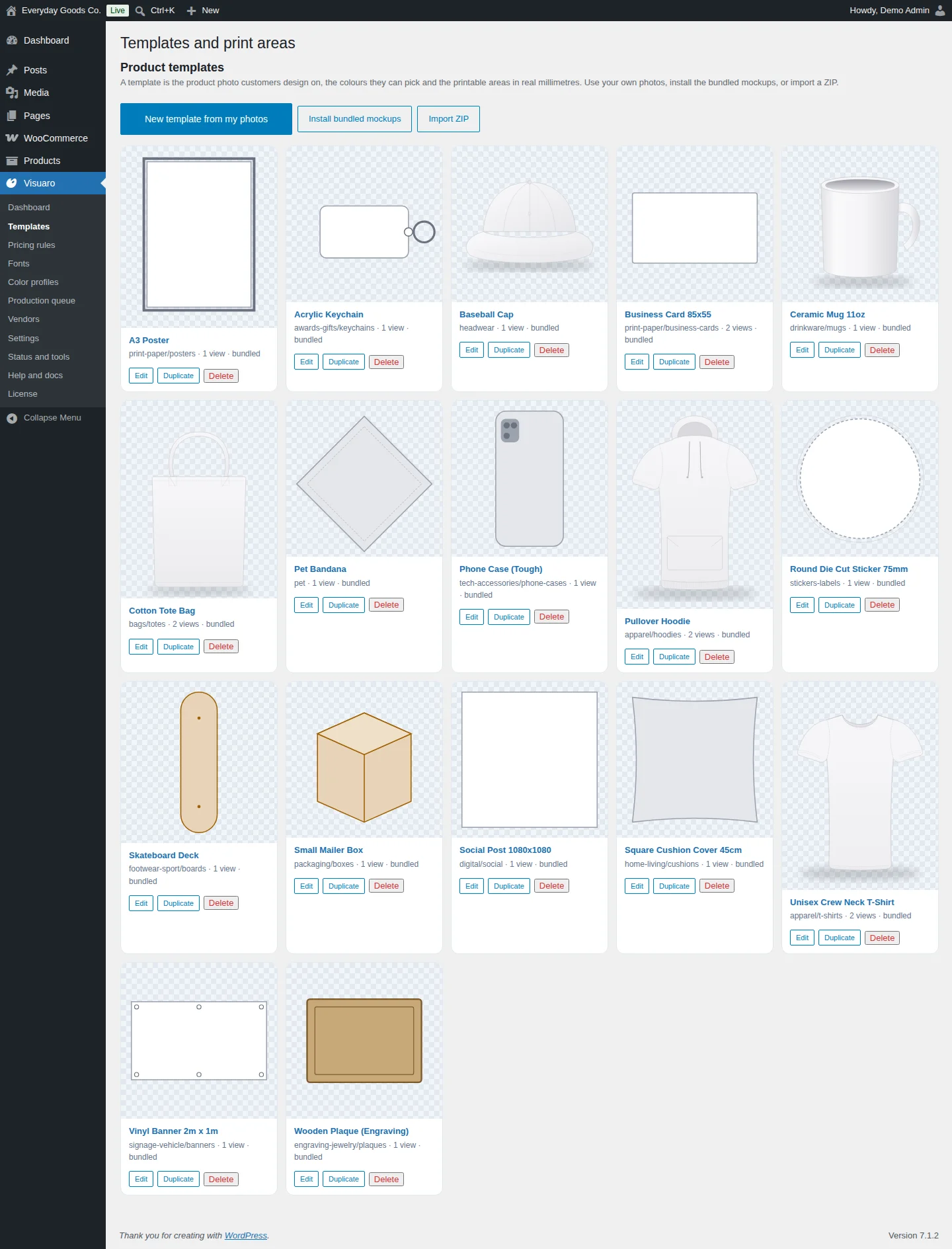

#Templates and print areas

Location: wp-admin/admin.php?page=visuaro-templates

On this screen:

  • Templates and print areas
  • Product templates
Screenshot: Templates and print areas
Templates and print areas

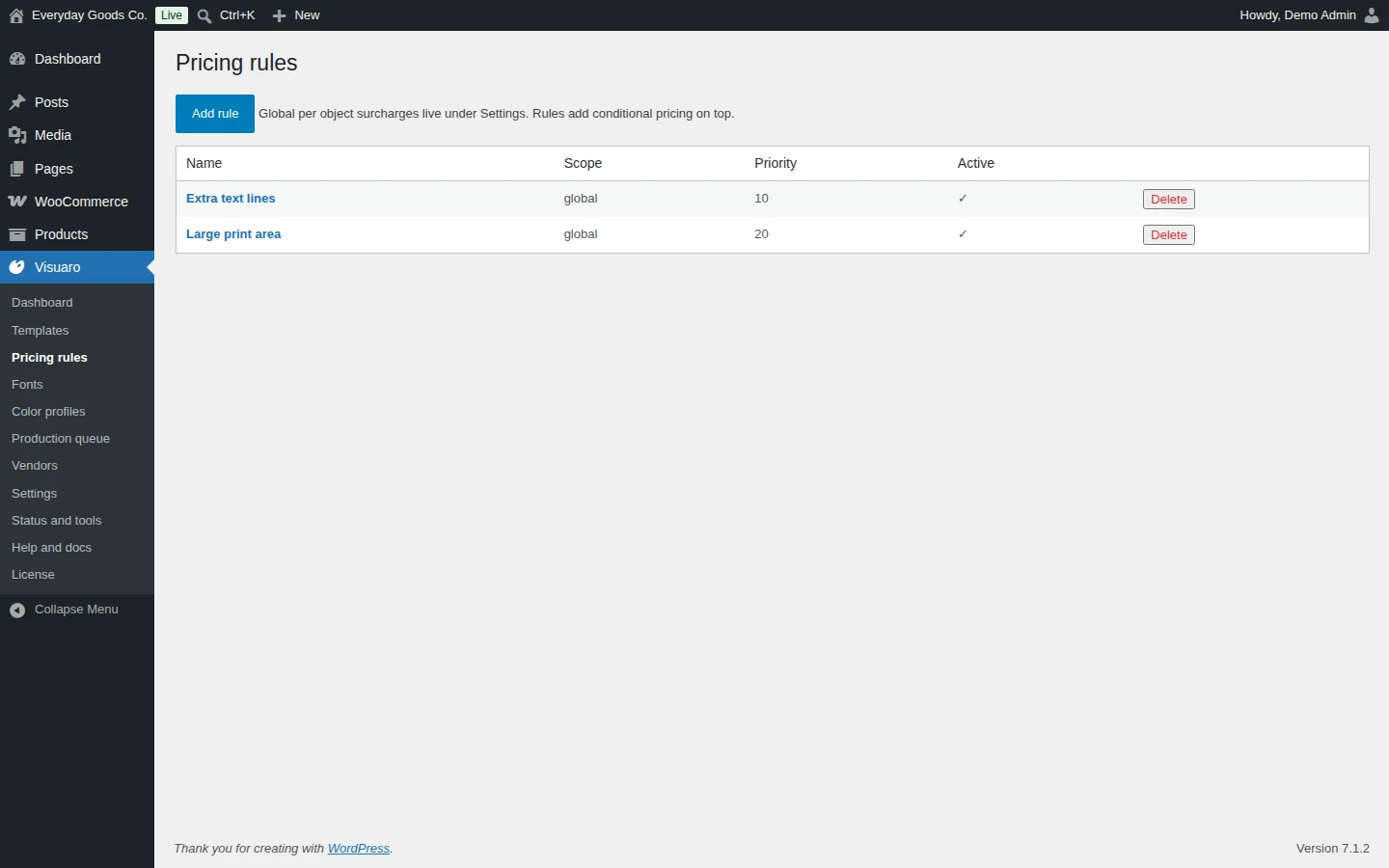

#Pricing rules

Location: wp-admin/admin.php?page=visuaro-pricing

On this screen:

  • Pricing rules
Screenshot: Pricing rules
Pricing rules

#Visuaro settings

Location: wp-admin/admin.php?page=visuaro-settings

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings
Visuaro settings

#Visuaro settings: Print output

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-output

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Print output
Visuaro settings: Print output

#Visuaro settings: Pricing

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-pricing

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Pricing
Visuaro settings: Pricing

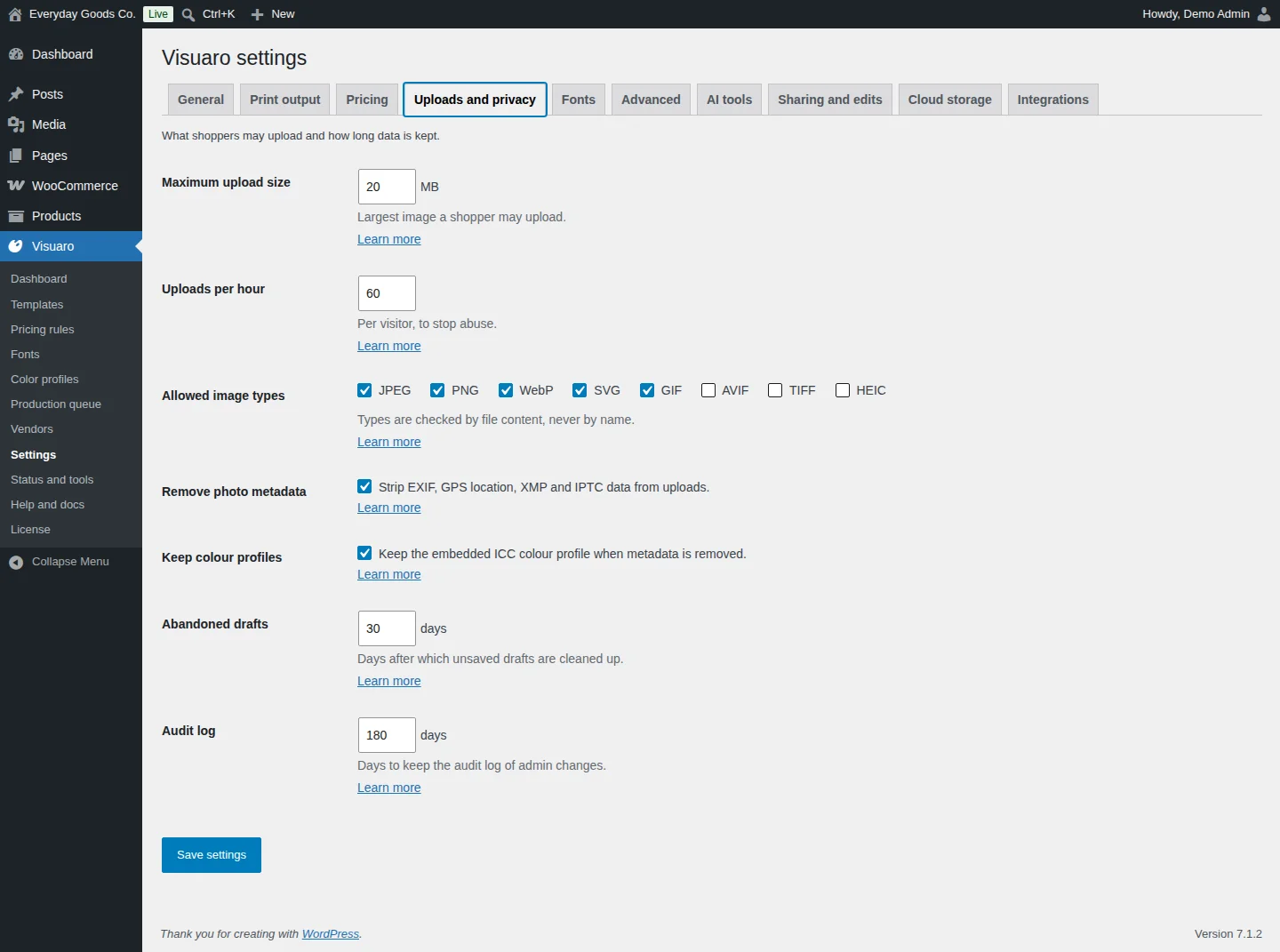

#Visuaro settings: Uploads and privacy

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-uploads

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Uploads and privacy
Visuaro settings: Uploads and privacy

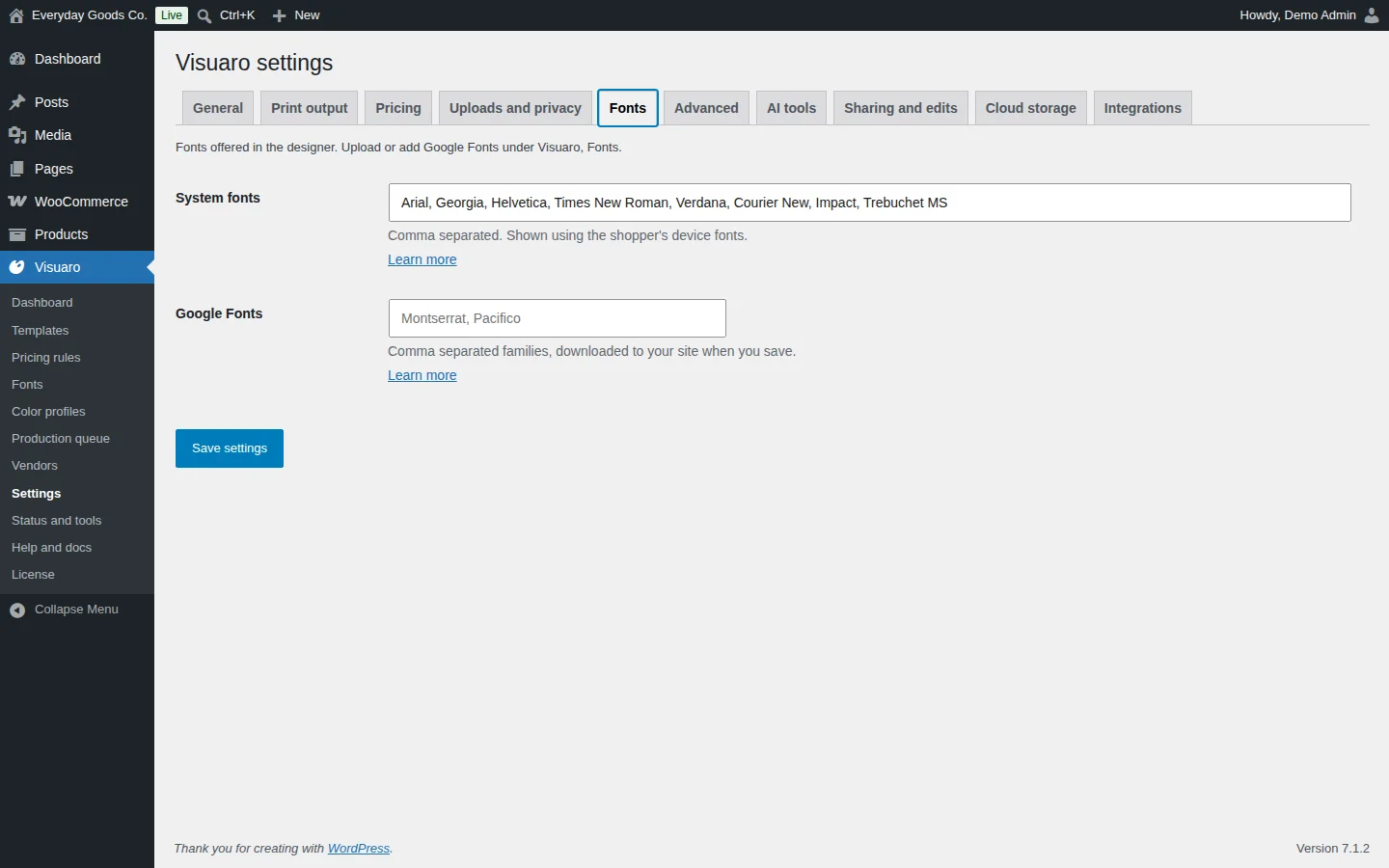

#Visuaro settings: Fonts

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-fonts

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Fonts
Visuaro settings: Fonts

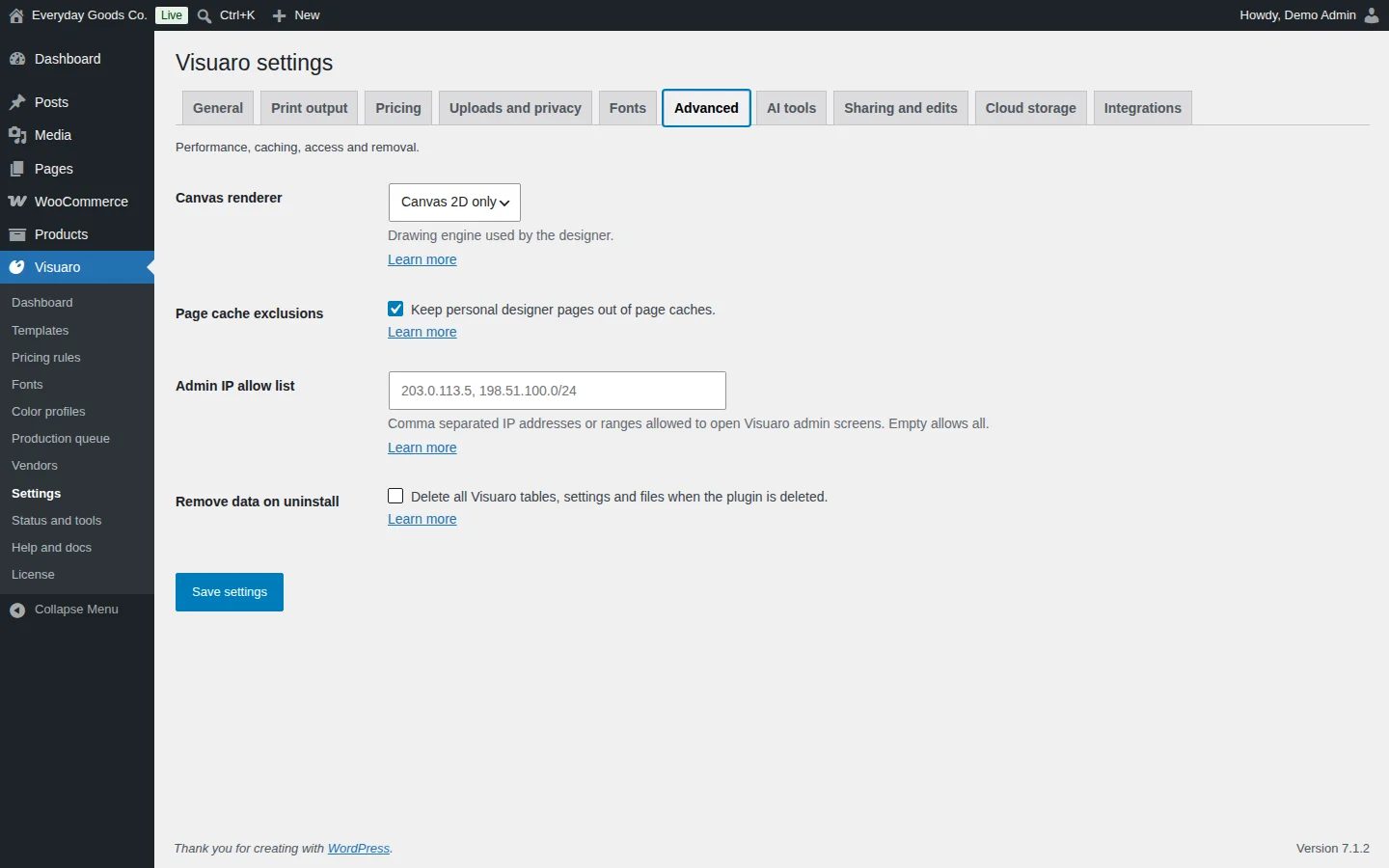

#Visuaro settings: Advanced

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-advanced

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Advanced
Visuaro settings: Advanced

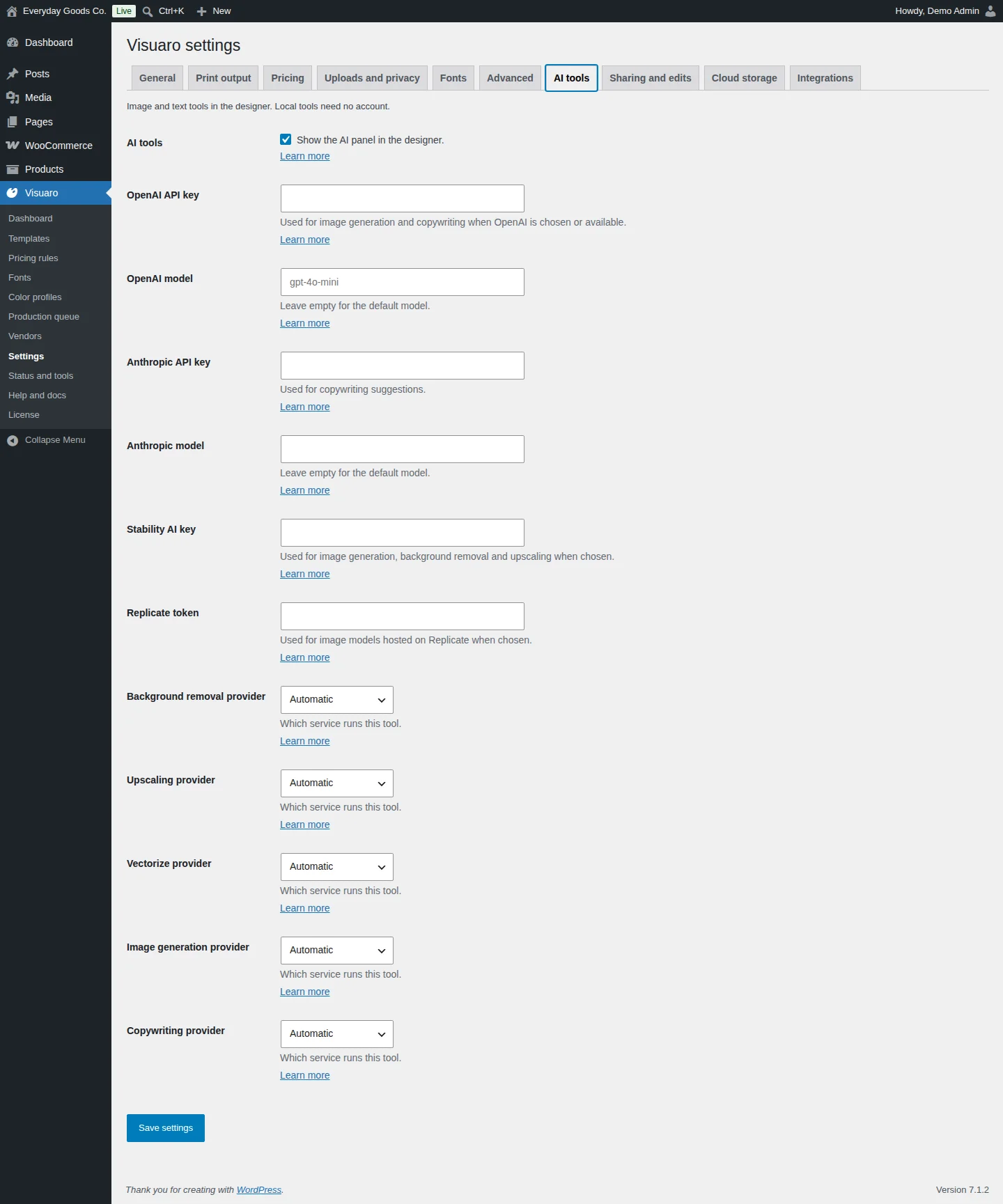

#Visuaro settings: AI tools

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-ai

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: AI tools
Visuaro settings: AI tools

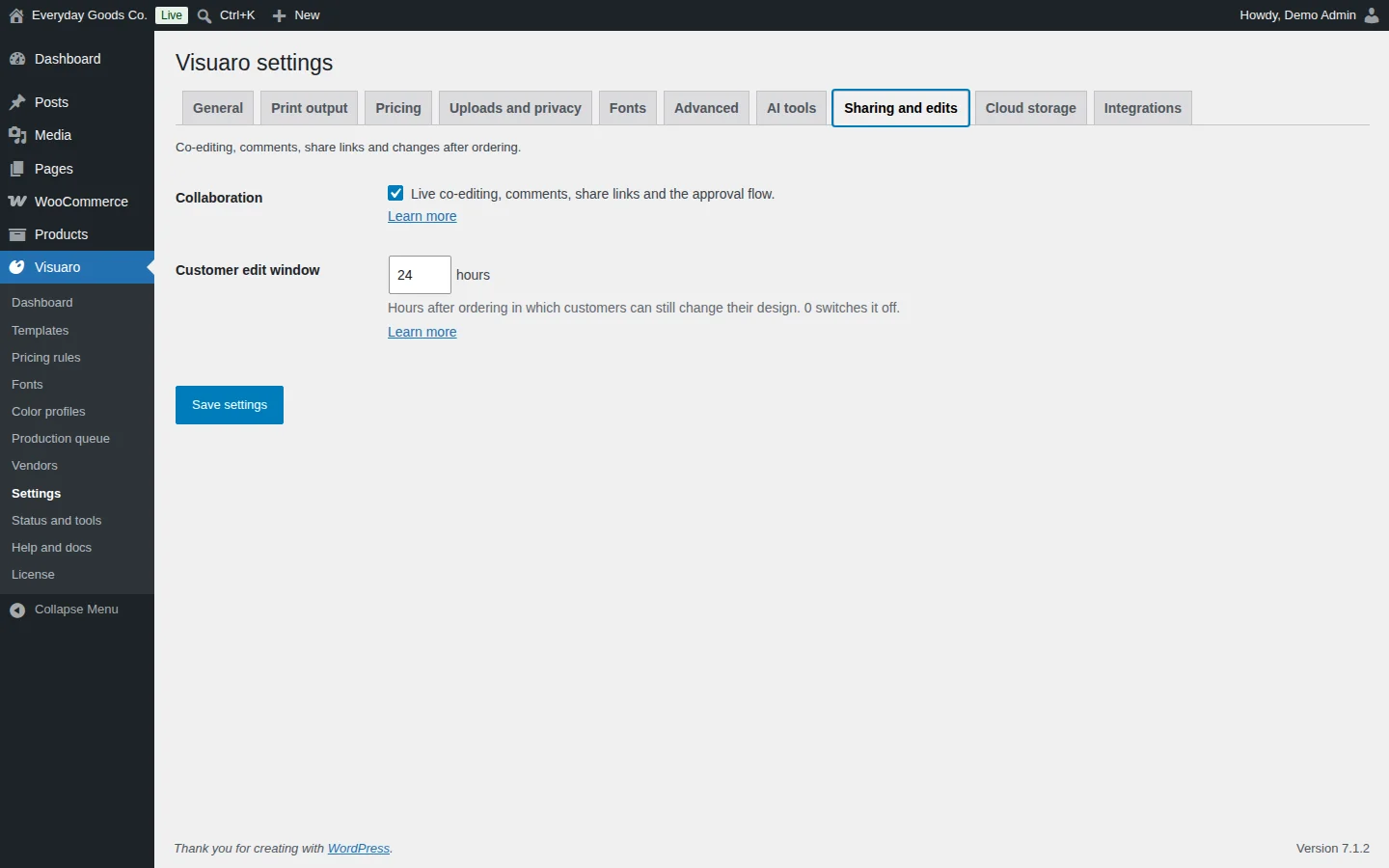

#Visuaro settings: Sharing and edits

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-collaboration

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Sharing and edits
Visuaro settings: Sharing and edits

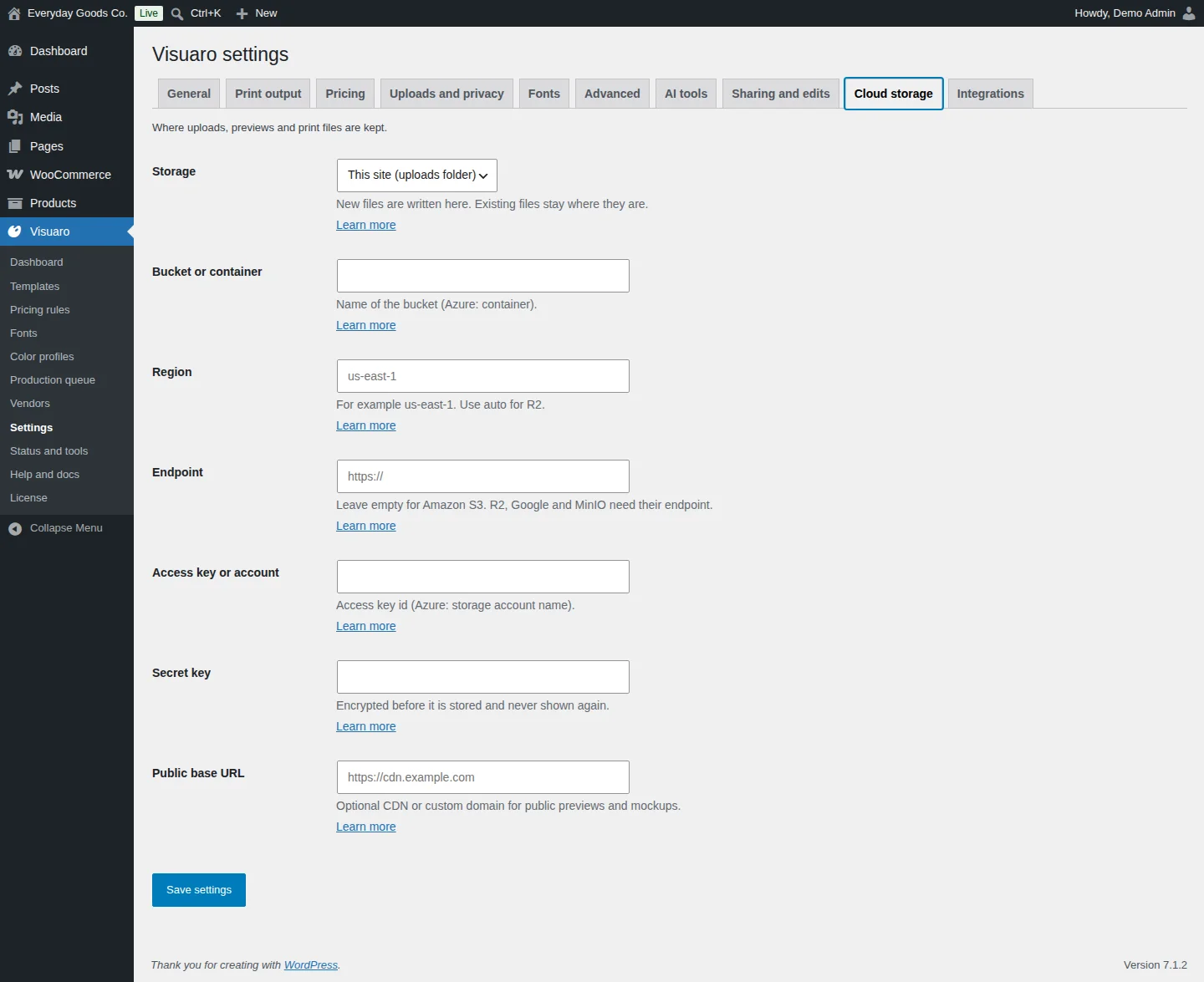

#Visuaro settings: Cloud storage

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-storage

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Cloud storage
Visuaro settings: Cloud storage

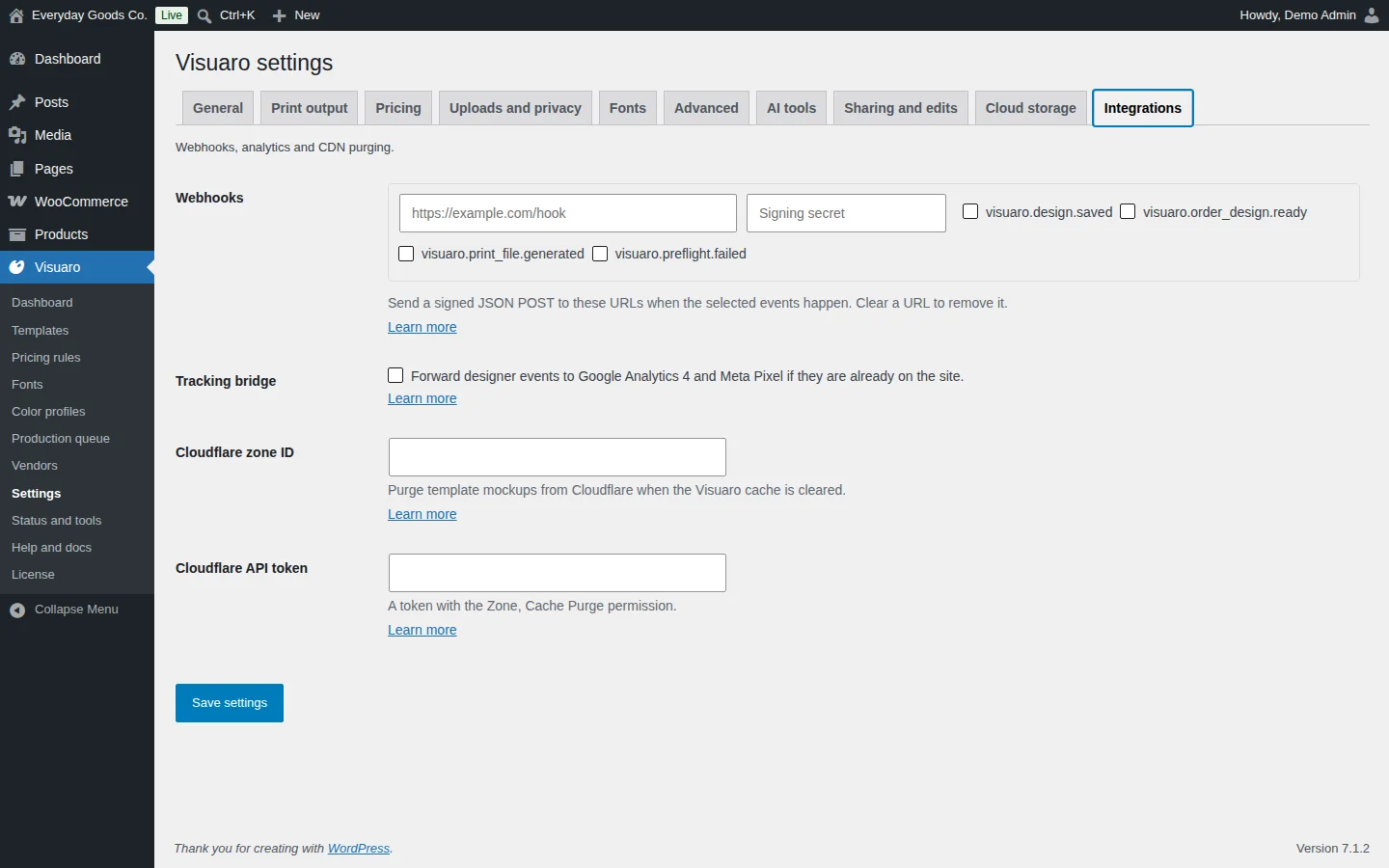

#Visuaro settings: Integrations

Location: wp-admin/admin.php?page=visuaro-settings#dsgn-tab-integrations

On this screen:

  • Visuaro settings
Screenshot: Visuaro settings: Integrations
Visuaro settings: Integrations

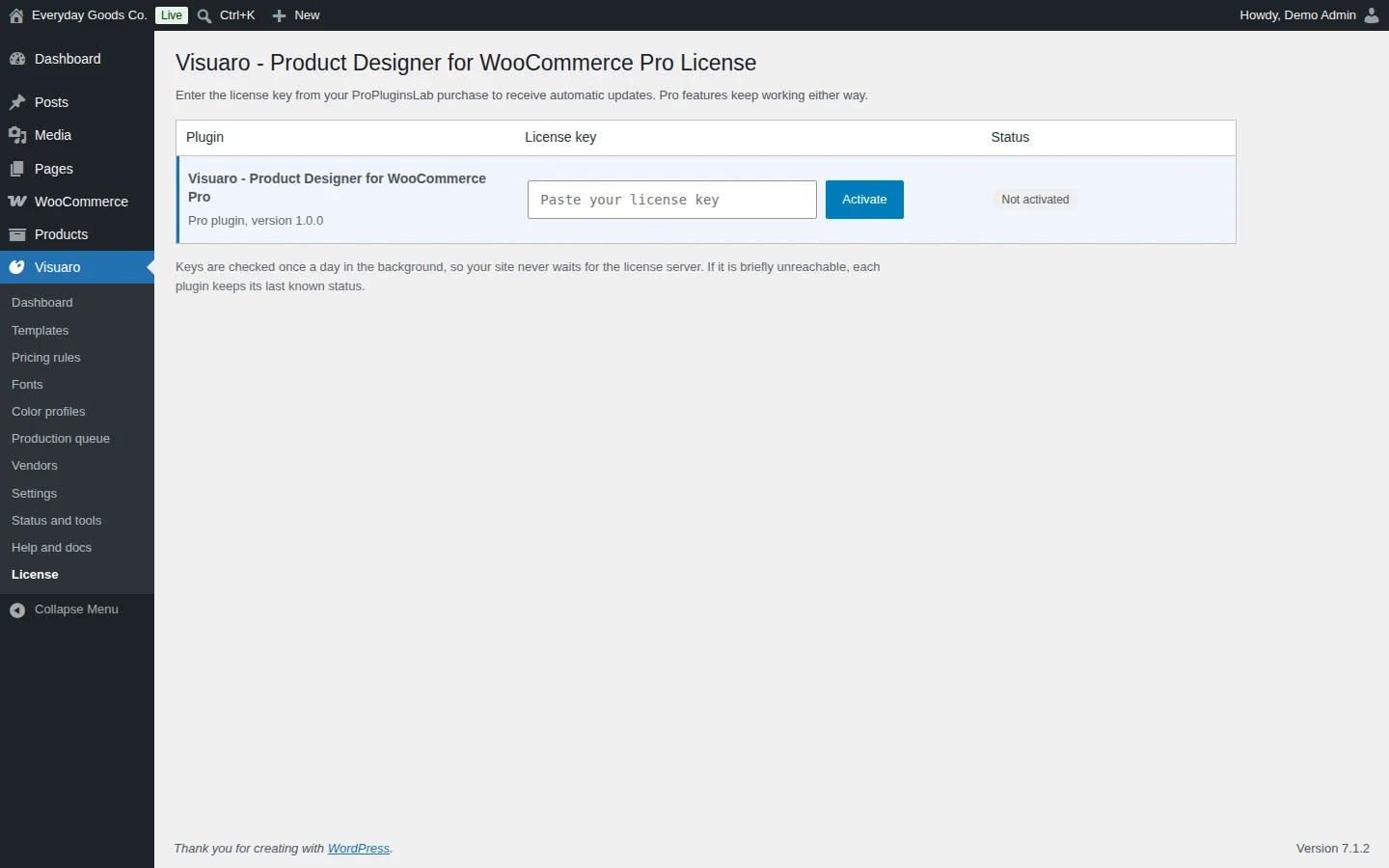

#Visuaro - Product Designer for WooCommerce Pro License

Location: wp-admin/admin.php?page=cwg-license-visuaro-product-designer-for-woocommerce-pro

On this screen:

  • Visuaro - Product Designer for WooCommerce Pro License
Screenshot: Visuaro - Product Designer for WooCommerce Pro License
Visuaro - Product Designer for WooCommerce Pro License

#Edit product

Location: wp-admin/post.php?post=11&action=edit

On this screen:

  • Edit product
  • Product description
  • Publish
  • Product image
  • Product gallery
  • Product categories
  • Product tags
  • Product brands
Screenshot: Edit product
Edit product

#Edit product: Designer product tab

Location: wp-admin/post.php?post=11&action=edit

On this screen:

  • Edit product
  • Product description
  • Publish
  • Product image
  • Product gallery
  • Product categories
  • Product tags
  • Product brands
Screenshot: Edit product: Designer product tab
Edit product: Designer product tab

#Edit order

Location: wp-admin/post.php?action=edit&post=51

On this screen:

  • Edit order
  • Order actions
  • Order attribution
  • Origin
  • Customer history
  • Total orders
  • Total revenue
  • Average order value
Screenshot: Edit order
Edit order

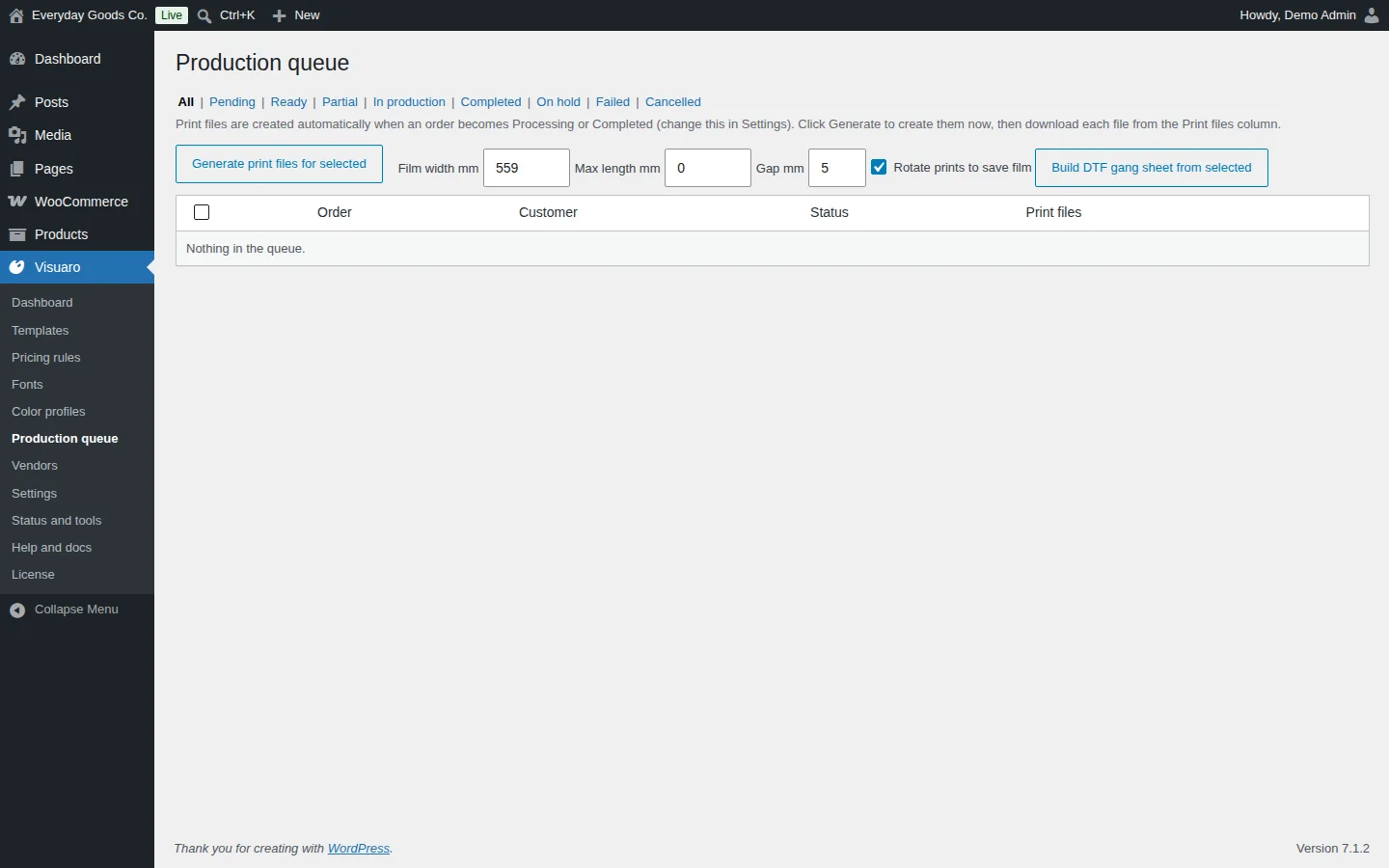

#Production queue

Location: wp-admin/admin.php?page=visuaro-production

On this screen:

  • Production queue
Screenshot: Production queue
Production queue

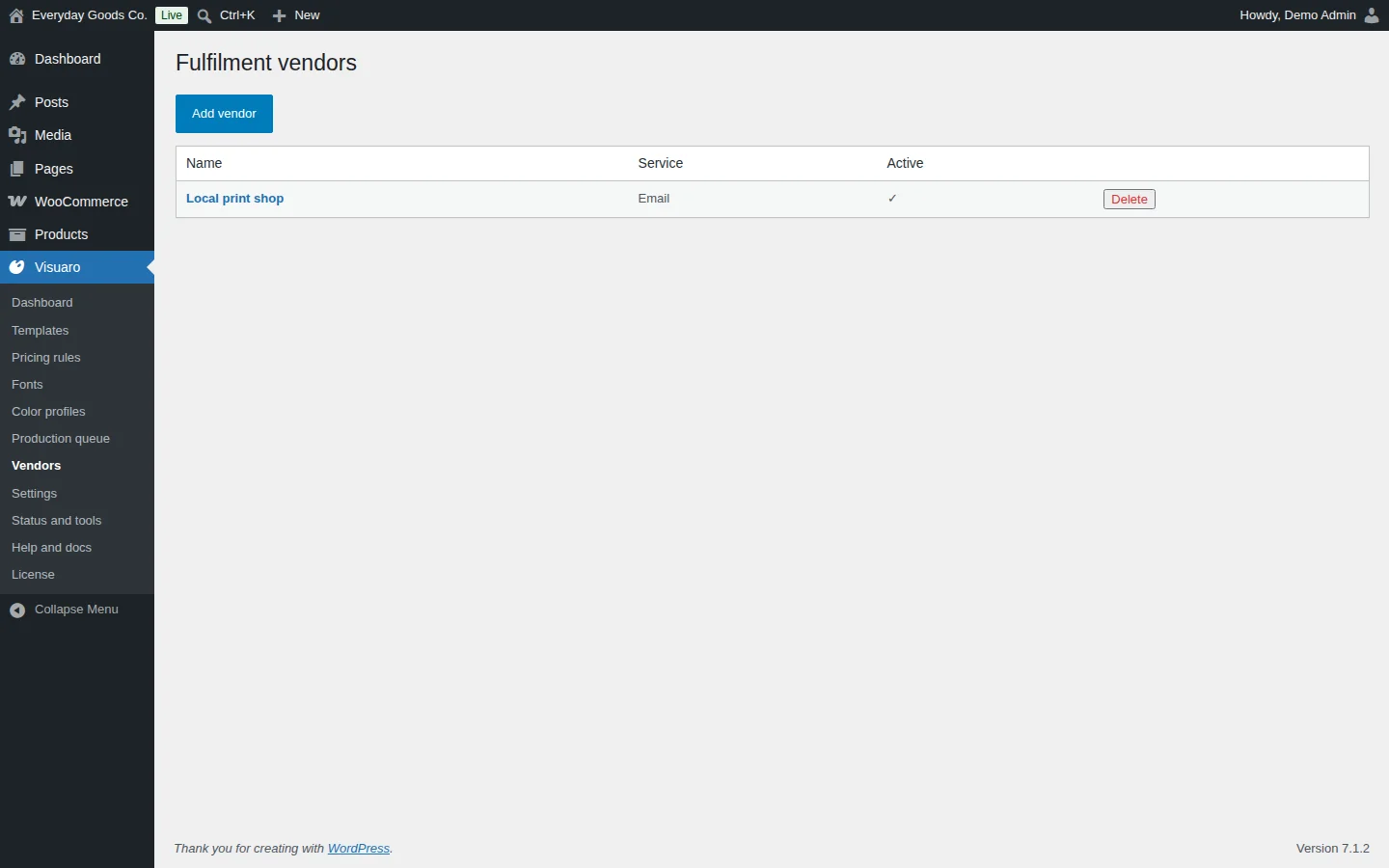

#Fulfilment vendors

Location: wp-admin/admin.php?page=visuaro-vendors

On this screen:

  • Fulfilment vendors
Screenshot: Fulfilment vendors
Fulfilment vendors

#Ready-made designs

Location: wp-admin/admin.php?page=visuaro-ready-designs

On this screen:

  • Ready-made designs
Screenshot: Ready-made designs
Ready-made designs

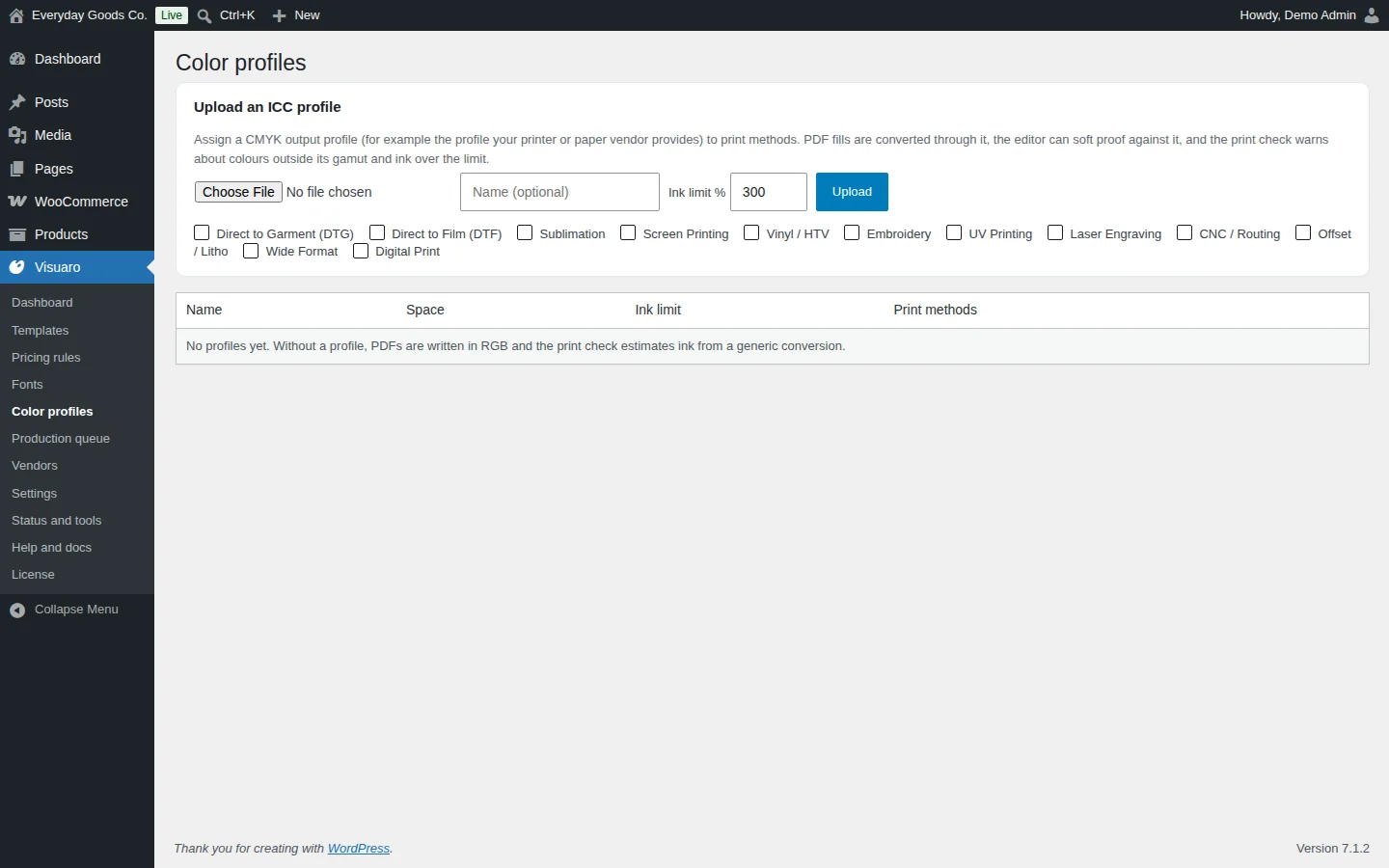

#Color profiles

Location: wp-admin/admin.php?page=visuaro-color

On this screen:

  • Color profiles
  • Upload an ICC profile
Screenshot: Color profiles
Color profiles

#Clipart

Location: wp-admin/admin.php?page=visuaro-clipart

On this screen:

  • Clipart library
  • Clipart
  • Upload clipart
  • Categories
Screenshot: Clipart
Clipart

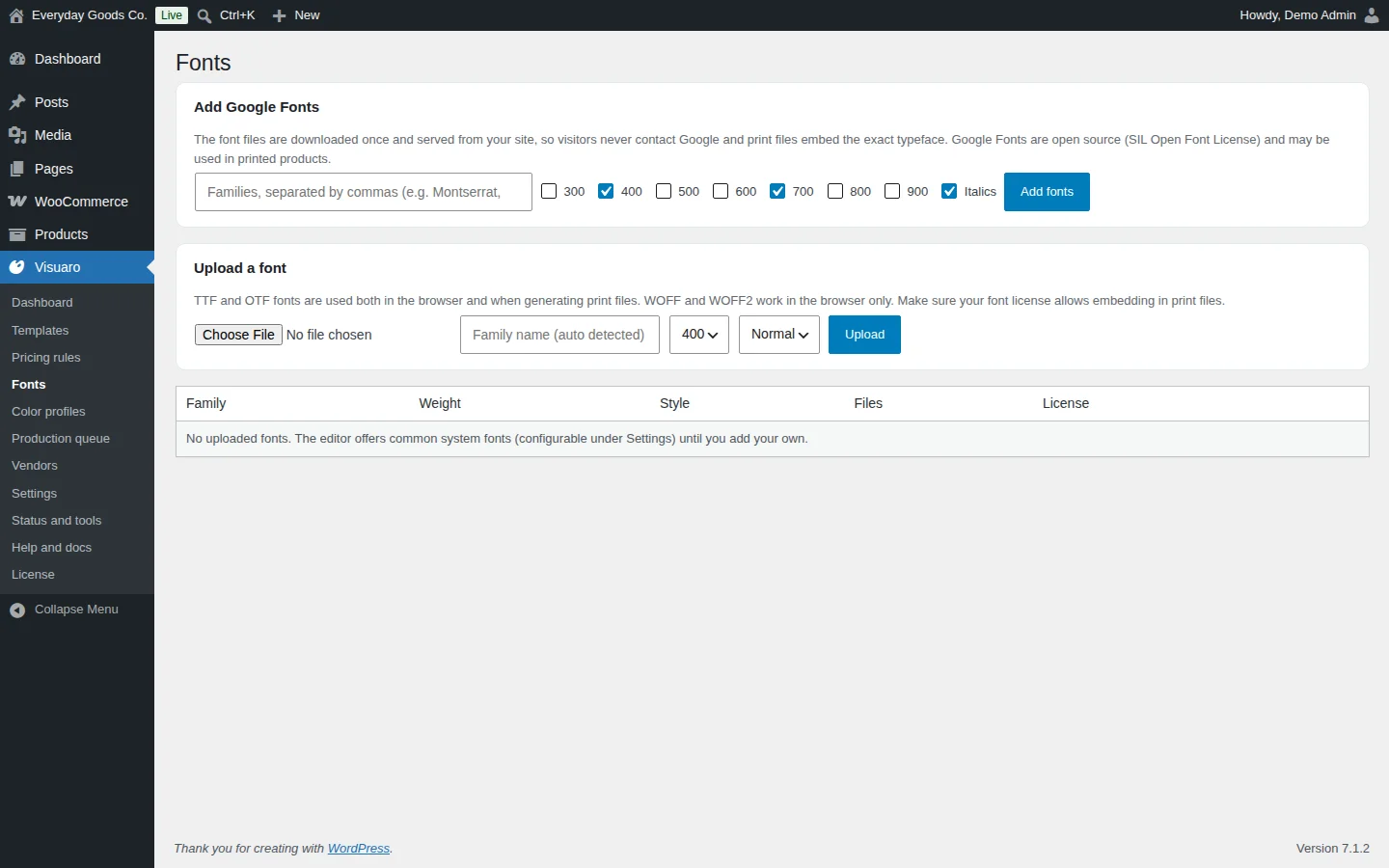

#Fonts

Location: wp-admin/admin.php?page=visuaro-fonts

On this screen:

  • Fonts
  • Add Google Fonts
  • Upload a font
Screenshot: Fonts
Fonts

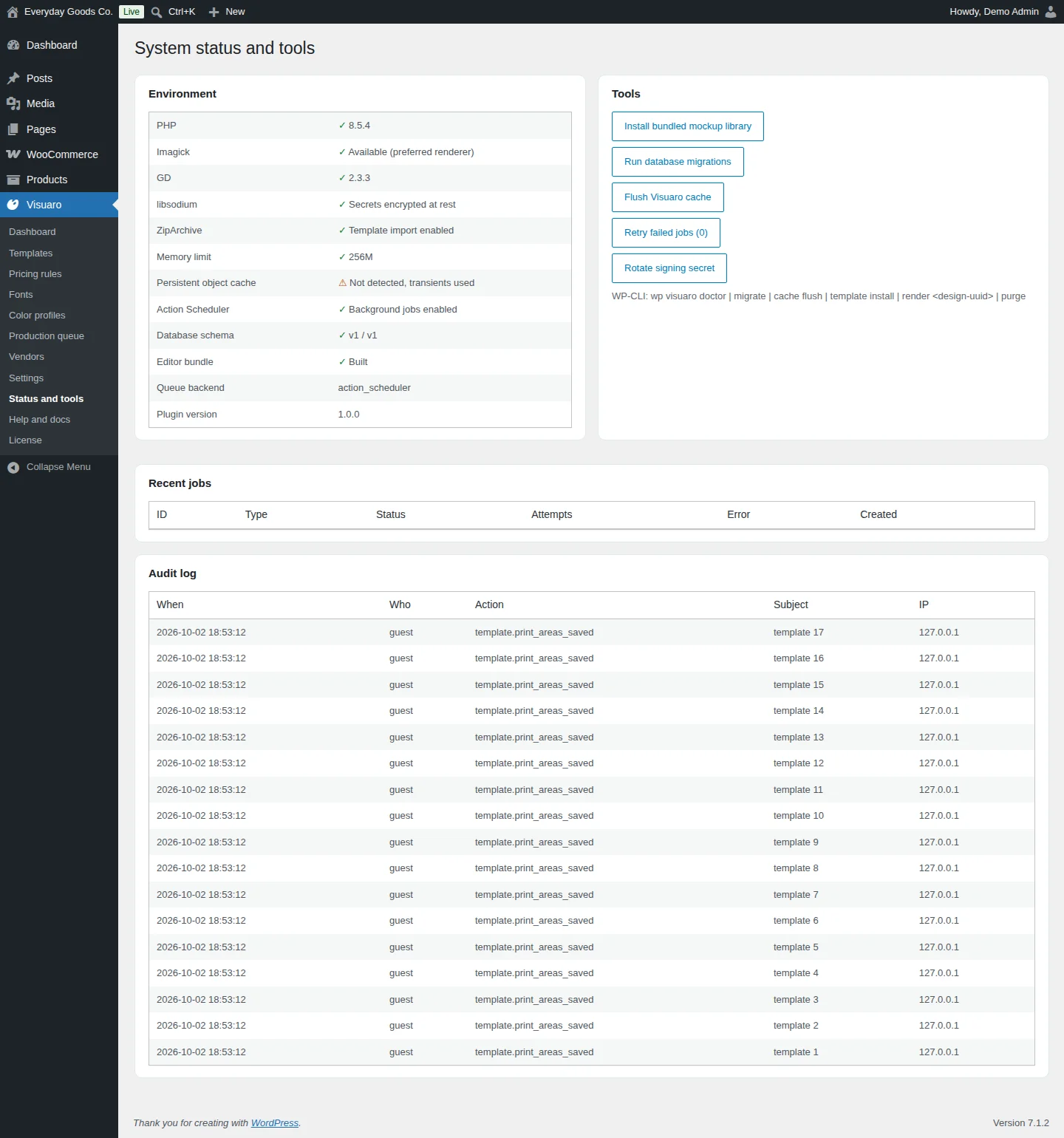

#Status and tools

Location: wp-admin/admin.php?page=visuaro-status

On this screen:

  • System status and tools
  • Environment
  • Tools
  • Recent jobs
  • Audit log
Screenshot: Status and tools
Status and tools

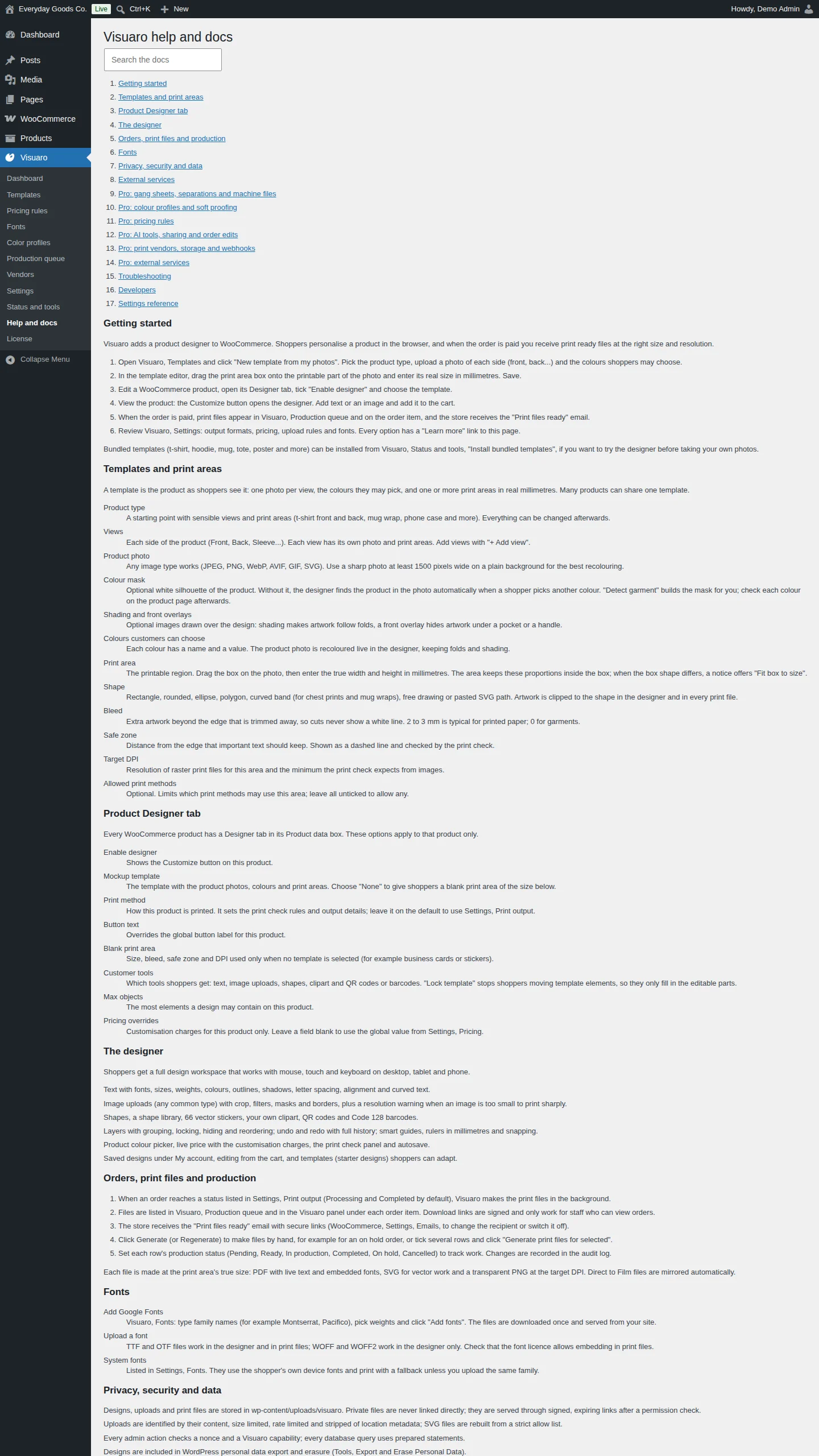

#Help and docs

Location: wp-admin/admin.php?page=visuaro-docs

On this screen:

  • Visuaro help and docs
  • Getting started
  • Templates and print areas
  • Product Designer tab
  • The designer
  • Orders, print files and production
  • Fonts
  • Privacy, security and data
Screenshot: Help and docs
Help and docs

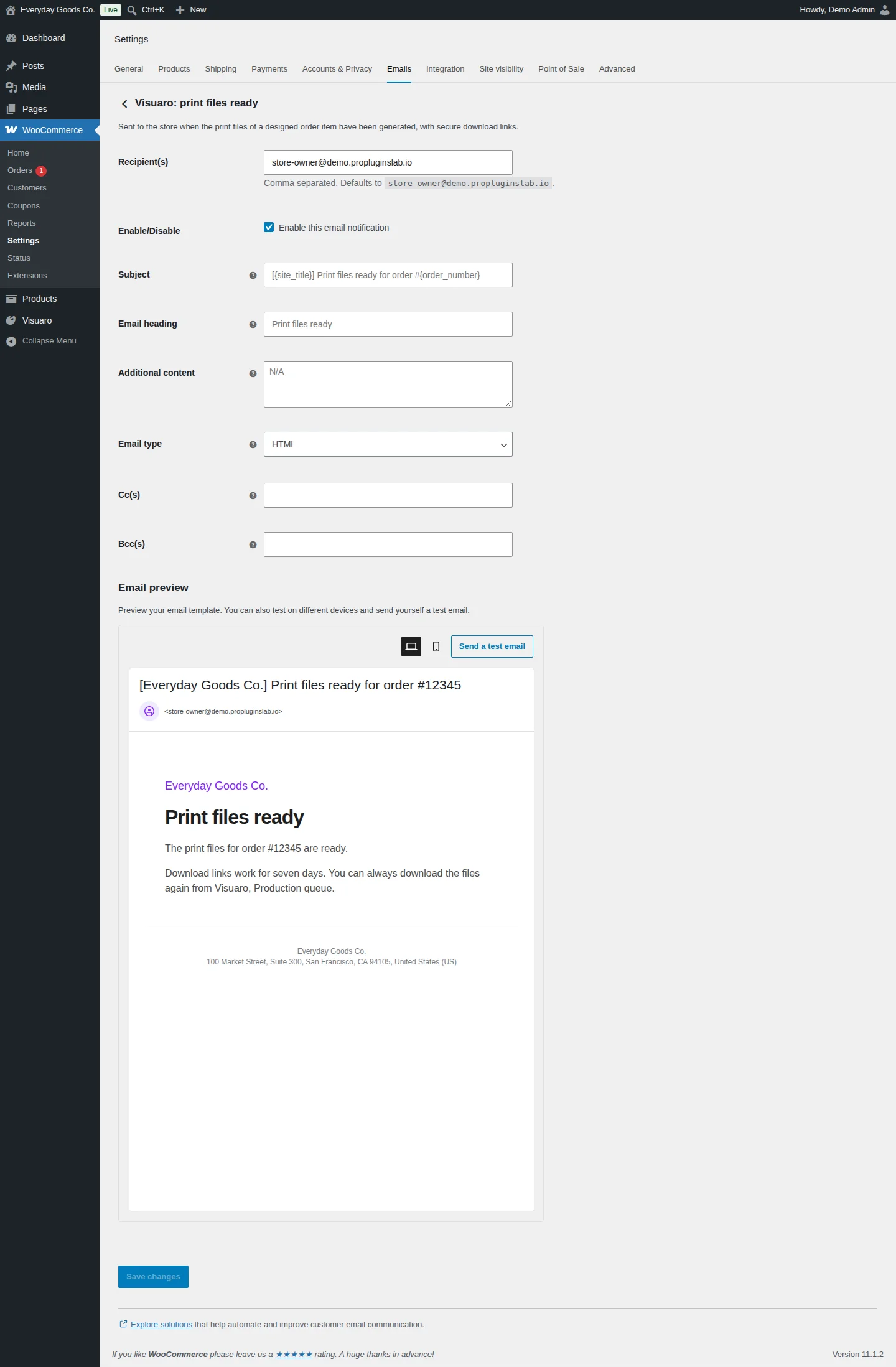

#WooCommerce > Settings > Email > Visuaro: print files ready

Location: wp-admin/admin.php?page=wc-settings&tab=email&section=visuaro_print_files_ready

On this screen:

  • Visuaro: print files ready
  • Email preview
  • [Everyday Goods Co.] Print files ready for order #12345
Screenshot: WooCommerce > Settings > Email > Visuaro: print files ready
WooCommerce > Settings > Email > Visuaro: print files ready

Settings reference

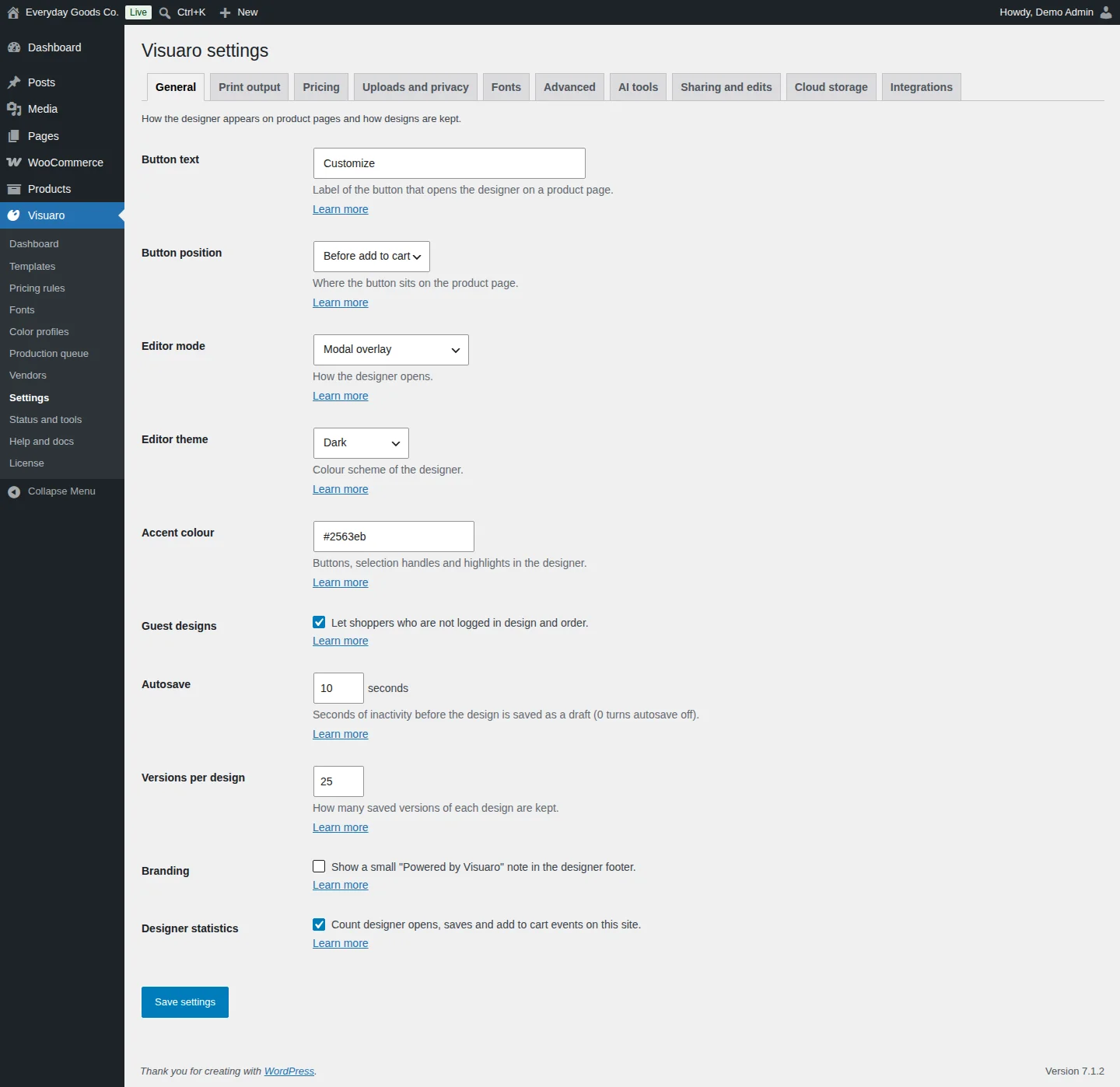

Visuaro settings

The Visuaro settings screen
Visuaro settings

#Button text

Text Default: Customize

Label of the button that opens the designer on a product page.

#Button position

Dropdown Default: Before add to cart

Where the button sits on the product page.

2 options

Before add to cartDefault
After add to cart

#Editor mode

Dropdown Default: Modal overlay

How the designer opens.

3 options

Modal overlayDefault
Full page (strict CSP)
Inline on the product page

#Editor theme

Dropdown Default: Dark

Colour scheme of the designer.

3 options

DarkDefault
Light
Follow device

#Measurement unit

Dropdown Default: Millimetres (mm)

Unit for sizes in the designer, the Designer tab and the template editor.

3 options

Millimetres (mm)Default
Centimetres (cm)
Inches (in)

#Designer opens with

Dropdown Default: Start card

What customers see first when they open the designer on a blank design.

2 options

Start cardDefault
Templates panel

#Built-in layouts

Checkbox Default: On

#Accent colour

Color Default: #2563eb

Buttons, selection handles and highlights in the designer.

#Guest designs

Checkbox Default: On

#Autosave

Number Default: 10

Seconds of inactivity before the design is saved as a draft (0 turns autosave off).

#Versions per design

Number Default: 25

How many saved versions of each design are kept.

#Branding

Checkbox Default: Off

#Designer statistics

Checkbox Default: On

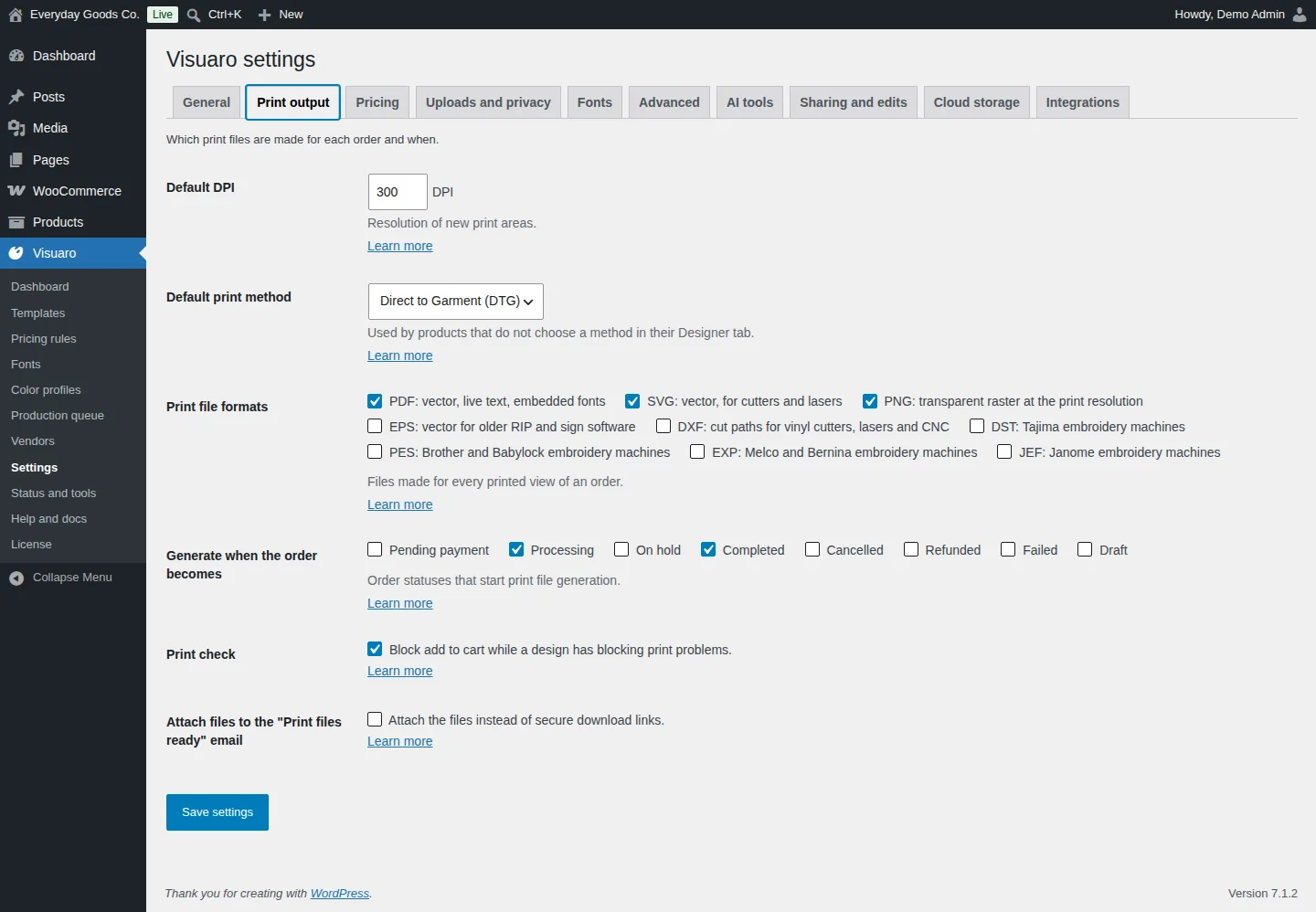

Visuaro settings: Print output

The Visuaro settings: Print output screen
Visuaro settings: Print output

#Default DPI

Number Default: 300

Resolution of new print areas and of products that leave Target DPI empty.

#Default print method

Dropdown Default: Direct to Garment (DTG)

Used by products whose Designer tab is set to "Store default".

12 options

Direct to Garment (DTG)Default
Direct to Film (DTF)
Sublimation
Screen Printing
Vinyl / HTV
Embroidery
UV Printing
Laser Engraving
CNC / Routing
Offset / Litho
Wide Format
Digital Print

#Print file formats

Checkboxes Default: PDF: vector, live text, embedded fonts, SVG: vector, for cutters and lasers, PNG: transparent raster at the print resolution

9 options

PDF: vector, live text, embedded fonts
SVG: vector, for cutters and lasers
PNG: transparent raster at the print resolution
EPS: vector for older RIP and sign software
DXF: cut paths for vinyl cutters, lasers and CNC
DST: Tajima embroidery machines
PES: Brother and Babylock embroidery machines
EXP: Melco and Bernina embroidery machines
JEF: Janome embroidery machines

#Generate when the order becomes

Checkboxes Default: Processing, Completed

8 options

Pending payment
Processing
On hold
Completed
Cancelled
Refunded
Failed
Draft

#Print check

Checkbox Default: On

#Attach files to the "Print files ready" email

Checkbox Default: Off

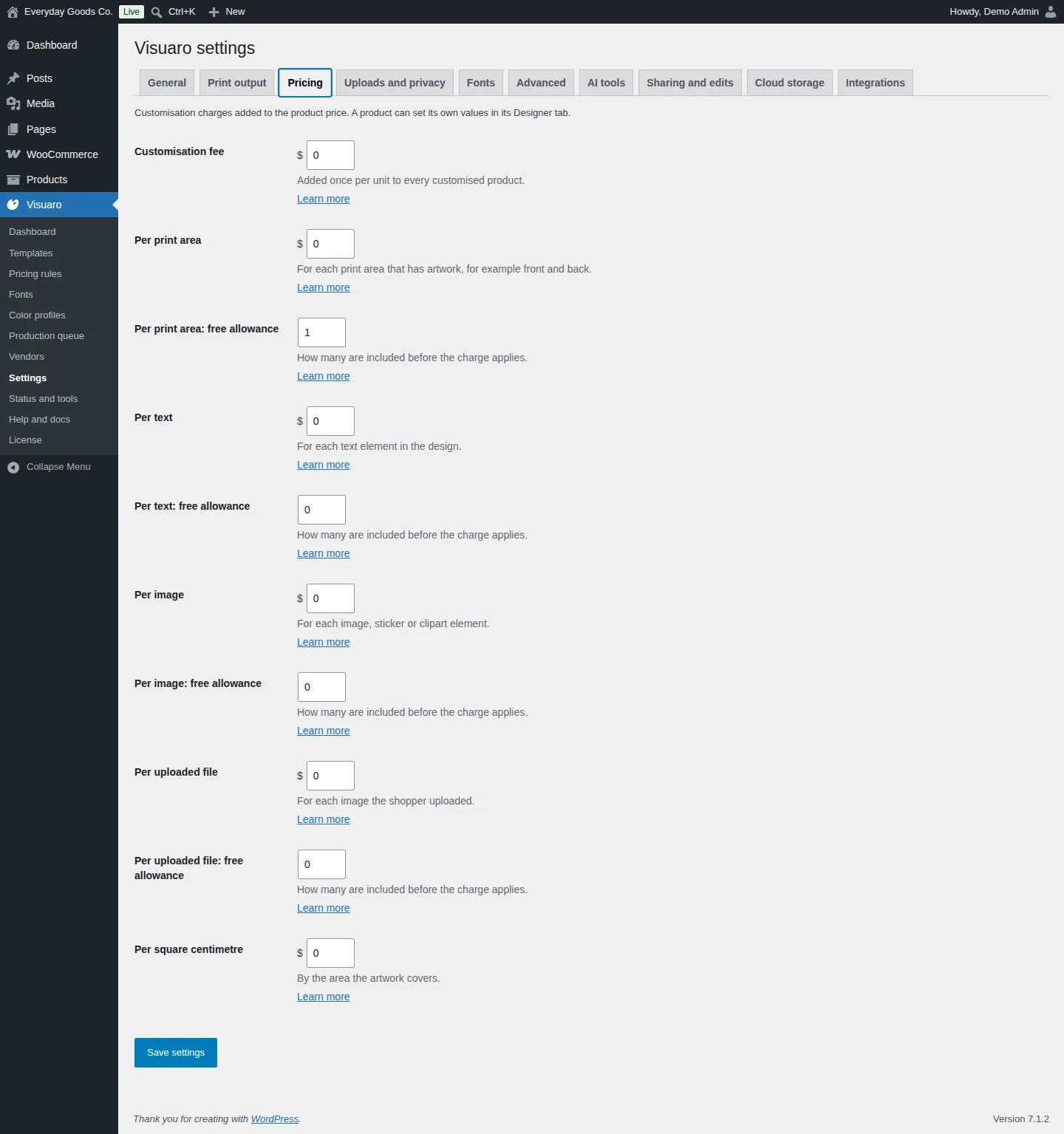

Visuaro settings: Pricing

The Visuaro settings: Pricing screen
Visuaro settings: Pricing

#Customisation fee

Number Default: 0

Added once per unit to every customised product.

#Per print area

Number Default: 0

For each print area that has artwork, for example front and back.

#Per print area: free allowance

Number Default: 1

How many are included before the charge applies.

#Per text

Number Default: 0

For each text element in the design.

#Per text: free allowance

Number Default: 0

How many are included before the charge applies.

#Per image

Number Default: 0

For each image, sticker or clipart element.

#Per image: free allowance

Number Default: 0

How many are included before the charge applies.

#Per uploaded file

Number Default: 0

For each image the shopper uploaded.

#Per uploaded file: free allowance

Number Default: 0

How many are included before the charge applies.

#Per square centimetre

Number Default: 0

By the area the artwork covers.

Visuaro settings: Uploads and privacy

The Visuaro settings: Uploads and privacy screen
Visuaro settings: Uploads and privacy

#Maximum upload size

Number Default: 20

Largest image a shopper may upload.

#Uploads per hour

Number Default: 60

Per visitor, to stop abuse.

#Allowed image types

Checkboxes Default: JPEG, PNG, WebP, SVG, GIF

8 options

JPEG
PNG
WebP
SVG
GIF
AVIF
TIFF
HEIC

#Remove photo metadata

Checkbox Default: On

#Keep colour profiles

Checkbox Default: On

#Abandoned drafts

Number Default: 30

Days after which unsaved drafts are cleaned up.

#Audit log

Number Default: 180

Days to keep the audit log of admin changes.

Visuaro settings: Fonts

The Visuaro settings: Fonts screen
Visuaro settings: Fonts

#System fonts

Text Default: Arial, Georgia, Helvetica, Times New Roman, Verdana, Courier New, Impact, Trebuchet MS

Comma separated. Shown using the shopper's device fonts.

#Google Fonts

Text

Comma separated families, downloaded to your site when you save.

Visuaro settings: Advanced

The Visuaro settings: Advanced screen
Visuaro settings: Advanced

#Canvas renderer

Dropdown Default: Canvas 2D only

Drawing engine used by the designer.

4 options

Automatic
WebGPU
WebGL2
Canvas 2D onlyDefault

#Page cache exclusions

Checkbox Default: On

#Admin IP allow list

Text

Comma separated IP addresses or ranges allowed to open Visuaro admin screens. Empty allows all.

#Remove data on uninstall

Checkbox Default: Off

Visuaro settings: AI tools

The Visuaro settings: AI tools screen
Visuaro settings: AI tools

#AI tools

Checkbox Default: On

#Paid AI for customers with an account

Checkbox Default: Off

#Daily AI limit for the store

Number Default: 500

Most calls to paid AI services per day, for all shoppers together. 0 means no limit.

#Daily AI limit per shopper

Number Default: 25

Most calls to paid AI services per day for one customer account, or one IP address for guests. 0 means no limit.

#OpenAI API key

Password

Used for image generation and copywriting when OpenAI is chosen or available.

#OpenAI model

Text

Leave empty for the default model.

#Anthropic API key

Password

Used for copywriting suggestions.

#Anthropic model

Text

Leave empty for the default model.

#Stability AI key

Password

Used for image generation, background removal and upscaling when chosen.

#Replicate token

Password

Used for image models hosted on Replicate when chosen.

#Background removal provider

Dropdown Default: Automatic

Which service runs this tool.

4 options

AutomaticDefault
This server (no key)
Stability AI
Replicate

#Upscaling provider

Dropdown Default: Automatic

Which service runs this tool.

4 options

AutomaticDefault
This server (no key)
Stability AI
Replicate

#Vectorize provider

Dropdown Default: Automatic

Which service runs this tool.

2 options

AutomaticDefault
This server (no key)

#Image generation provider

Dropdown Default: Automatic

Which service runs this tool.

4 options

AutomaticDefault
OpenAI
Stability AI
Replicate

#Copywriting provider

Dropdown Default: Automatic

Which service runs this tool.

3 options

AutomaticDefault
OpenAI
Anthropic

Visuaro settings: Sharing and edits

The Visuaro settings: Sharing and edits screen
Visuaro settings: Sharing and edits

#Collaboration

Checkbox Default: On

#Customer edit window

Number Default: 24

Hours after ordering in which customers can still change their design. 0 switches it off.

#Proof approval

Checkbox Default: Off

Visuaro settings: Cloud storage

The Visuaro settings: Cloud storage screen
Visuaro settings: Cloud storage

#Storage

Dropdown Default: This site (uploads folder)

New files are written here. Existing files stay where they are.

5 options

This site (uploads folder)Default
Amazon S3
Cloudflare R2
Google Cloud Storage
Azure Blob Storage

#Bucket or container

Text

Name of the bucket (Azure: container).

#Region

Text

For example us-east-1. Use auto for R2.

#Endpoint

Text

Leave empty for Amazon S3. R2, Google and MinIO need their endpoint.

#Access key or account

Text

Access key id (Azure: storage account name).

#Secret key

Password

Encrypted before it is stored and never shown again.

#Public base URL

Text

Optional CDN or custom domain for public previews and mockups.

Visuaro settings: Integrations

The Visuaro settings: Integrations screen
Visuaro settings: Integrations

#Endpoint URL

URL

#Signing secret

Password

#Webhooks

Checkboxes

9 options

visuaro.design.saved
visuaro.design.reviewed
visuaro.order_design.ready
visuaro.order_design.changed
visuaro.print_file.generated
visuaro.preflight.failed
visuaro.vendor.dispatched
visuaro.vendor.status_changed
visuaro.gang_sheet.created

#Tracking bridge

Checkbox Default: Off

#Cloudflare zone ID

Text

Purge template mockups from Cloudflare when the Visuaro cache is cleared.

#Cloudflare API token

Password

A token with the Zone, Cache Purge permission.

Print areas

The Print areas screen
Print areas

#Template name

Text Default: A3 Poster

#Category (apparel/t-shirts)

Text Default: print-paper/posters

#Name

Text Default: Poster

4 options

Select:
attribute_pa_scent
attribute_pa_size
total_sales

#Width mm

Number Default: 297

#Height mm

Number Default: 420

#Bleed mm

Number Default: 3

#Safe zone mm

Number Default: 5

#Target DPI

Number Default: 300

#Rotation deg

Number Default: 0

#dtg

Checkbox Default: Off

#dtf

Checkbox Default: Off

#sublimation

Checkbox Default: Off

#screen

Checkbox Default: Off

#vinyl

Checkbox Default: Off

#embroidery

Checkbox Default: Off

#uv

Checkbox Default: Off

#laser

Checkbox Default: Off

#cnc

Checkbox Default: Off

#offset

Checkbox Default: On

#wide format

Checkbox Default: On

#digital

Checkbox Default: On

Print areas: + Add view

The Print areas: + Add view screen
Print areas: + Add view

#Template name

Text Default: A3 Poster

#Category (apparel/t-shirts)

Text Default: print-paper/posters

#Name

Text Default: Poster

4 options

Select:
attribute_pa_scent
attribute_pa_size
total_sales

#Width mm

Number Default: 297

#Height mm

Number Default: 420

#Bleed mm

Number Default: 3

#Safe zone mm

Number Default: 5

#Target DPI

Number Default: 300

#Rotation deg

Number Default: 0

#dtg

Checkbox Default: On

#dtf

Checkbox Default: Off

#sublimation

Checkbox Default: Off

#screen

Checkbox Default: Off

#vinyl

Checkbox Default: Off

#embroidery

Checkbox Default: Off

#uv

Checkbox Default: Off

#laser

Checkbox Default: Off

#cnc

Checkbox Default: Off

#offset

Checkbox Default: On

#wide format

Checkbox Default: On

#digital

Checkbox Default: On

Production queue

The Production queue screen
Production queue

#Max length mm

Number Default: 0

#Gap mm

Number Default: 5

#DPI

Number Default: 0

#Rotate prints to save film

Checkbox Default: On

#Select all

Checkbox Default: Off

#Select

Checkbox Default: Off

#Send to vendor

Dropdown Default: Send to vendor

2 options

Send to vendorDefault
Local print shop

Color profiles

The Color profiles screen
Color profiles

#Direct to Garment (DTG)

Checkboxes

12 options

Direct to Garment (DTG)
Direct to Film (DTF)
Sublimation
Screen Printing
Vinyl / HTV
Embroidery
UV Printing
Laser Engraving
CNC / Routing
Offset / Litho
Wide Format
Digital Print

Clipart

The Clipart screen
Clipart

#Also bring back starter items I removed

Checkbox Default: Off

#Price per item in Shapes

Number

#Price per item in Badges and banners

Number

#Price per item in Arrows

Number

#Price per item in Celebration

Number

#Price per item in Sports

Number

#Price per item in Nature

Number

#New category name

Text

#Filter by category

Dropdown Default: All categories (30)

8 options

All categories (30)Default
Shapes (6)
Badges and banners (6)
Arrows (3)
Celebration (3)
Sports (5)
Nature (7)
Uncategorised (0)

#Bulk action

Dropdown Default: Bulk actions

3 options

Bulk actionsDefault
Move to category
Remove from library

#Select

Checkboxes

#Price

Number

SVG, starter pack

Fonts

The Fonts screen
Fonts

#Italics

Checkbox Default: On

#Family name (auto detected)

Text

#weight

Dropdown Default: 400

7 options

300
400Default
500
600
700
800
900

#style

Dropdown Default: Normal

2 options

NormalDefault
Italic

Help and docs

The Help and docs screen
Help and docs

#Search the documentation

Text

WooCommerce > Settings > Email > Visuaro: print files ready

The WooCommerce > Settings > Email > Visuaro: print files ready screen
WooCommerce > Settings > Email > Visuaro: print files ready

#Enable/Disable

Checkbox Default: On

#Subject

Text

#Email heading

Text

#Additional content

Text area

#Email type

Dropdown Default: HTML

3 options

Plain text
HTMLDefault
Multipart

#Cc(s)

Text

#Bcc(s)

Text

Shortcodes

[visuaro]

Shortcode registered by the plugin.

[visuaro]

[visuaro_button]

Shortcode registered by the plugin.

[visuaro_button]

On your site

These pages show what visitors see on your site.

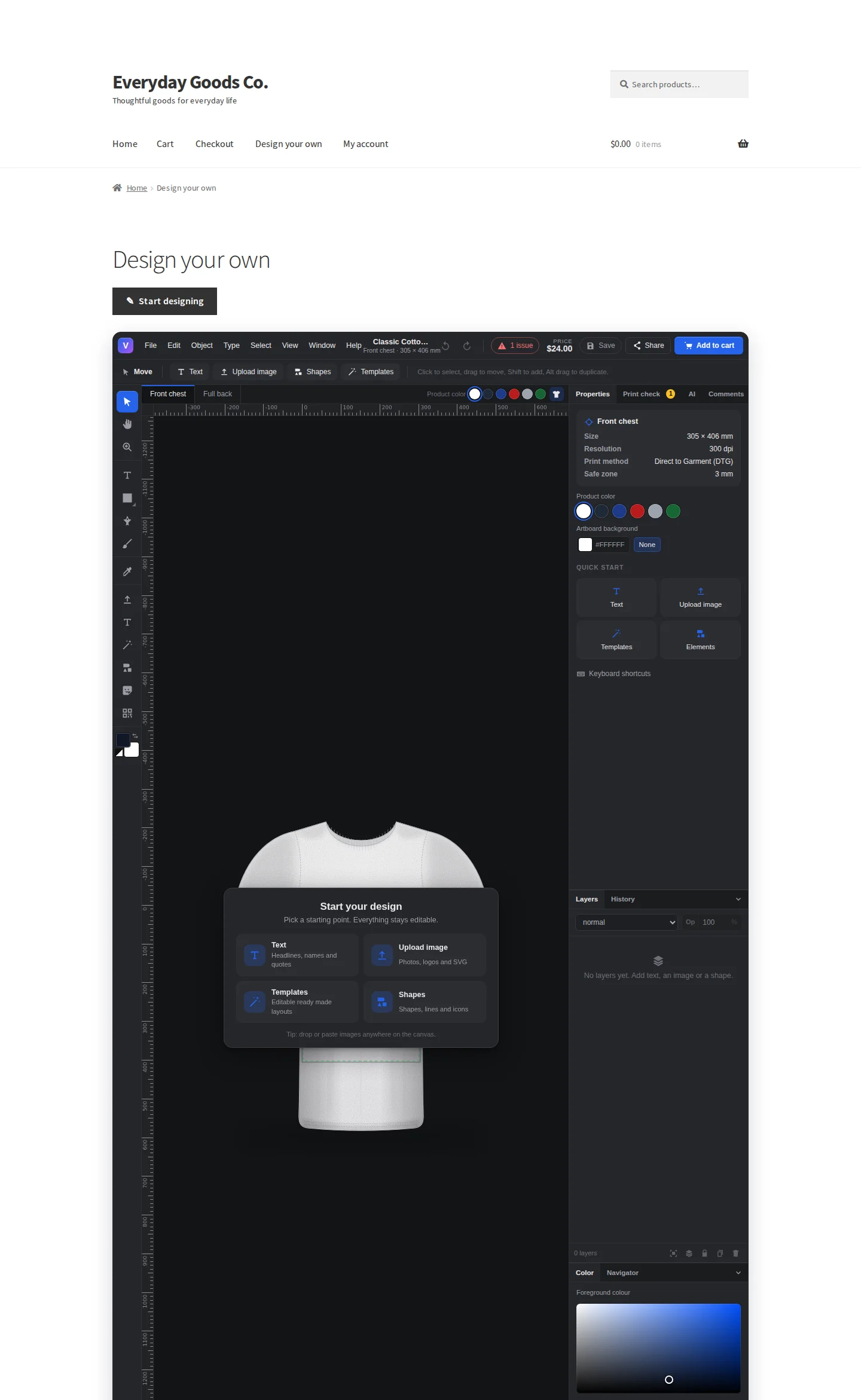

Screenshot: Design your own
Design your own

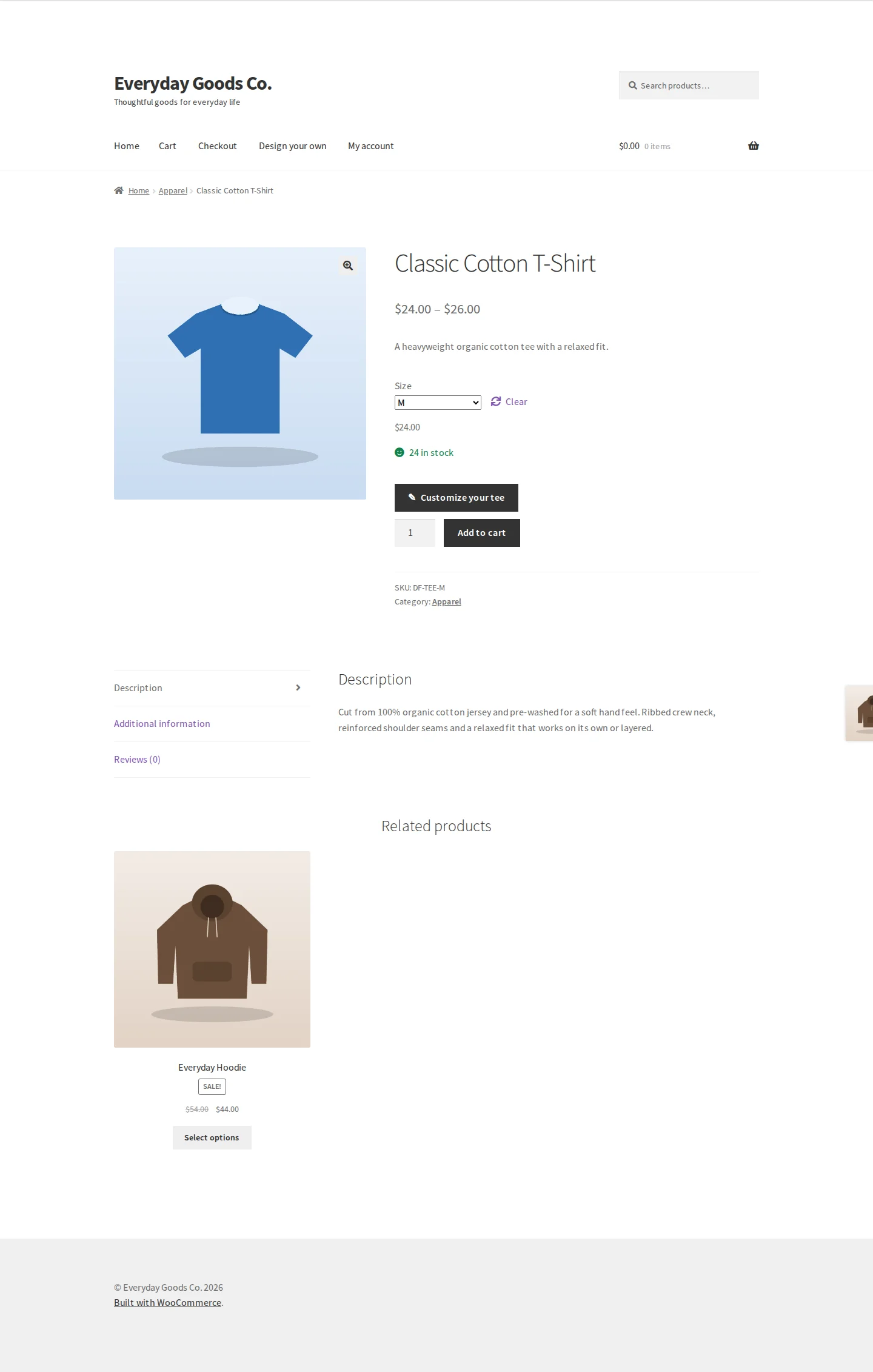

Screenshot: Product page with the Customize button
Product page with the Customize button
Screenshot: My account, Saved designs
My account, Saved designs
